SUMMARIZE

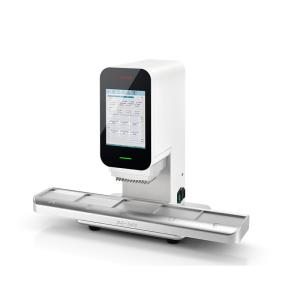

EL-2600 is a multi-mode complete system that meets the requirements of small flow rate and high precision spiking. It is widely used in PCR system construction for nucleic acid extraction, hospital laboratory specimen pre-treatment, biological laboratory and various scientific research units' experimental sites. The system has multi-plate position design, which is suitable for micro-splitting assay, model development, PCR reaction system construction and protein crystallization. The independent spiking head can reach any well position of a standard SBS plate, enabling complex mold design. The system has three ranges (20-1000uL, 5-200uL, 1-20uL) to meet the needs of different experimental volumes. in addition, the instrument is fully automated for operation without staffing and can be placed in biosafety cabinets and ultra-clean tables for operation.
PARAMETERS
| The principle | adopts the gas piston liquid transfer technology to achieve 96 channels of accurate liquid transfer |
| Sample flux | 96 channels |
| Range | 1~1000 μl |
| Volume increment | ≤ 0.1 μl |
| Compatibility mode | SBS standard plate 96 orifice plate |
| Number of boards | ≥4 |
| Screen size | 8-inch high resolution color large touch screen |
| Operating system | Linux operating system |
| Software upgrade | USB interface one button upgrade |
| Reagent matching | Match mainstream reagents on the market |
| volume | 675mm x 313mm x 508mm |
| Weight | 30kg |
| Recommended service life | 5 years |
Model Liquid transfer range
►EL-2600L 1~20 μL ►EL-2600M 5~200 μL ►EL-2600H 50~1000 μL
WHY TO CHOOSE
1. Ultra small volume
Ultra compact and lightweight design, convenient for moving and placing super clean table, fume hood, safety cabinet, etc. in the laboratory
2. Multiple application scenarios
It integrates multiple liquid transfer functions. You can switch between different types of experiments by clicking Run
3. Multiple mode
Single liquid separation and continuous liquid separation, supporting operations such as blowing, blowing, reverse suction, suspending and samplingSupport common job loading and project template calling
4. High accuracy
Precise positioning of suction nozzle Microporous liquid transfer speed Editable liquid transfer process
5. Multiple range
Three measuring ranges: 50-100 μL,5-200 μL,1-20μL. Meet the requirements of different experimental volumes
