Product description

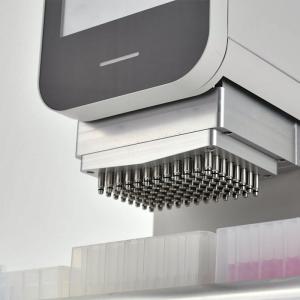

The EL-2600 Series fully automated sample handling system is a complete system for small flow rates and high precision. The EL-2600 series is a complete system to meet the requirements of small flow and high precision spiking. It is the latest struggle of Huisong Technology Development Corporation. The system utilizes multi-plate position design for micro-splitting assays, model development, PCR reaction system establishment and protein crystallization. The independent spiking head can reach any well position of the standard SBS plate to achieve complex model development and design. The instrument has an embedded 8" color operation display for independent operation and operation, and allows real-time monitoring of operation status.
Shining points
♦Unattended
Unattended 96 channels have high consistency and can effectively control the appropriate immersion
♦High accuracy
Precise positioning of suction nozzle Microporous liquid transfer speed Editable liquid transfer process
♦Ultra small volume
Ultra compact and lightweight design, convenient for moving and placing super clean table, fume hood, safety cabinet, etc. in the laboratory
♦Precise
Precise engineering design, μ Grade II manufacturing process, allowing 96 pistons to move synchronously, with separate channels, ensuring the repeatability of the experiment
Parameters
| Weight | 30kg |
| Recommended service life | 5 years |
| The principle | adopts the gas piston liquid transfer technology to achieve 96 channels of accurate liquid transfer |
| Sample flux | 96 channels |
| Range | 1~1000 μl |
| Volume increment | ≤ 0.1 μl |
| Compatibility mode | SBS standard plate 96 orifice plate |
| Number of boards | ≥ 4 |
| Screen size | 8-inch high resolution color large touch screen |
| Operating system | Linux operating system |
| Software upgrade | USB interface one button upgrade |
| Reagent matching | Match mainstream reagents on the market |
| volume | 675mm x 313mm x 508mm |
